Unveiling the Core of Optical Communication: Optical Sub-Assembly

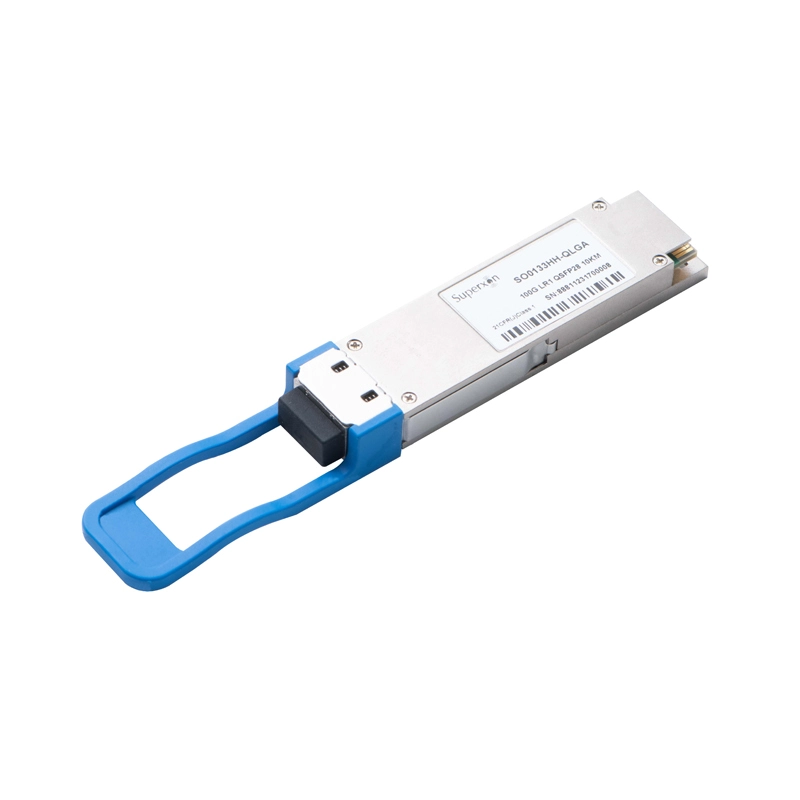

Superxon 100G SINGLE LAMBDA QSFP28 transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE 802.3ba.
The 100G QSFP28 SINGLE LAMBDA can reach up to 40km through single-mode optical fiber.
Supports bit rates up to 103.125Gbps
3.3V power supply
Hot-pluggable capability
QSFP28 MSA Compliant
SINGLE LAMBDA
Digital diagnostics functions are available via the I2C interface.
Product | Part No. | Wavelength | Distance | Connector | Temp. Range |
100G LR1 QSFP28 | SO0133HH-QLGA | 1311nm | 10km | LC | C |
100G LR1-20 QSFP28 | SO0233HH-QLGA | 1311nm | 20km | LC | C |
QSFP28 100G ER1-30 | SO0333HH-QLGA | 1311nm | 30km | LC | C |
QSFP28 100G ER1-40 | SO04JJHH-QLGA | 1309.14nm | 40km | LC | C |
QSFP28 100G BIDI LR1 | SO0127(72)HH-QLGA | 1271/1331 | 10km | LC | C |
QSFP28 100G BIDI LR1-20 | SO0239(93)HH-QLGA | 1291/1311 | 20km | LC | C |
QSFP28 100G BIDI ER1-30 | SO03IJ(JI)HH-QLGA | 1304.58/1309.14 | 30km | LC | C |
QSFP28 100G BIDI ER1-40 | SO04IJ(JI)HH-QLGA | 1304.58/1309.14 | 40km | LC | C |
