Unveiling the Core of Optical Communication: Optical Sub-Assembly

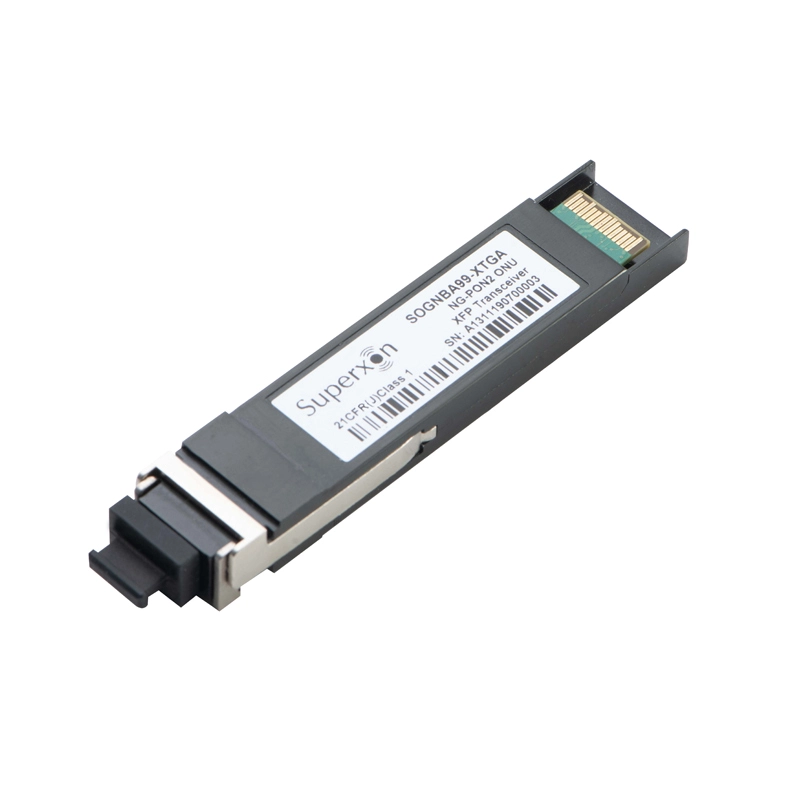

Superxon NG-PON2 ONU/OLT transceivers are compliant to the latest releases of the XFP MSA, ITU-T G.989.2
Single fiber bi-directional data links, downstream 9.95G continuous mode and upstream 9.95G burst mode application
3.3V power supply
Hot-pluggable capability
Upstream Central Frequency(THZ): 195.6, 195.5, 195.4 and 195.3
Downstream Central Frequency(THZ): 187.8, 187.7, 187.6 and 187.5
Product | Part No. | Distance | Package & Connector | Temp. Range |
NG-PON2 OLT N2 | SOGNAB99-XSGB | 20km | XFP & SC | C |
NG-PON2 ONU N2 | SOGNBA99-XTGA | 20km | XFP & SC | C |
