Superxon 200G QSFP56 LR4 transceiver modules are designed for use in 200 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP MSA and IEEE 802.3bs.The optical transceiver is RoHS compliant.
Supports bit rates up to 212.5Gbps
3.3V power supply
Hot-pluggable capability
QSFP56 MSA Compliant
Digital diagnostics functions are available via the I2C interface.
Product | Part No. | Rate | Wavelength | Distance | Connector | Temp. Range |
200G QSFP56 SR4 | SO0A88SS-QMGA | 4X50GbE/CPRI | 850nm | 100m | MPO | C, I |

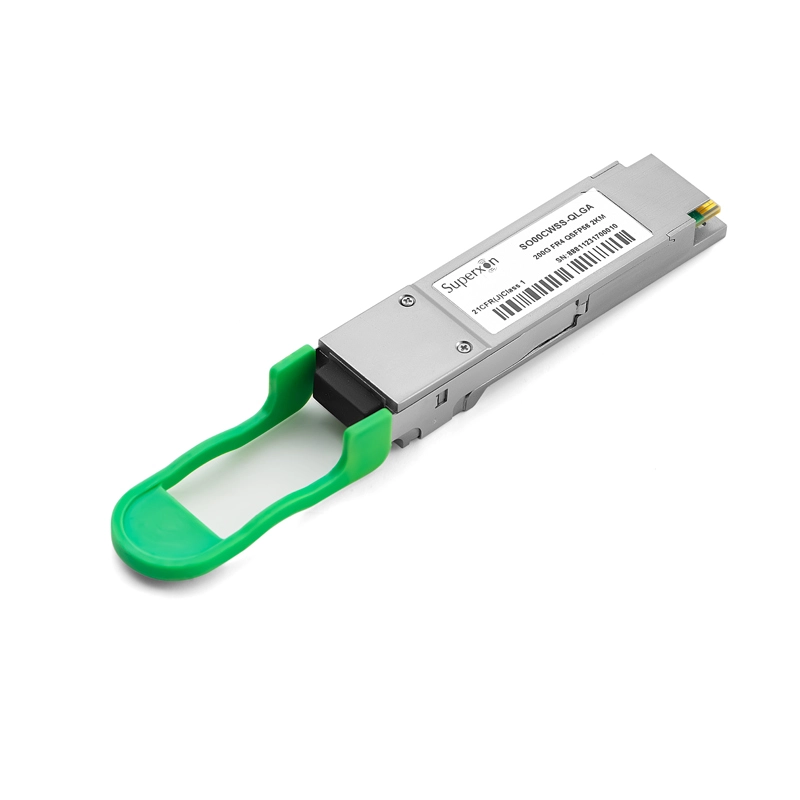

200G QSFP56 FR4 | SO00CWSS-QLGA | 4X50GbE/CPRI | 1271nm,1291nm,1311nm,1331nm | 2km | LC | C, I |
200G QSFP56 LR4 | SO01LLSS-QLGA | 4X50GbE/CPRI | 1295.56nm,1300.05nm,1304.58nm,1309.14nm | 10km | LC | C, I |
