Unveiling the Core of Optical Communication: Optical Sub-Assembly

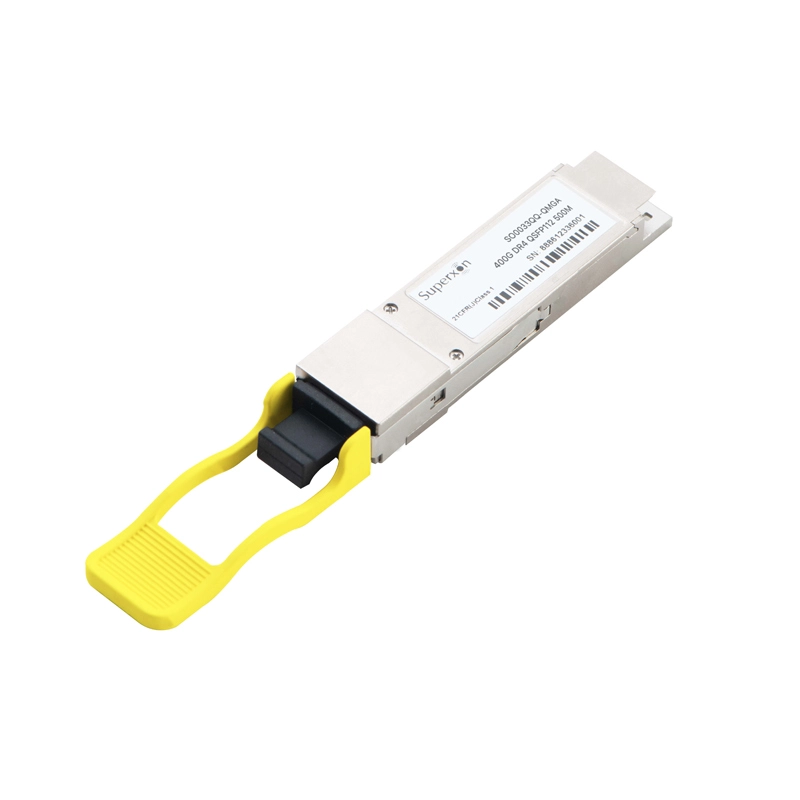

Superxon QSFP112 400G transceivers are compliant with the latest QSFP112 MSA standards and support 112G-PAM4 electrical and optical signaling. They are available for SR4, DR4, FR4, and LR4 interfaces, with firmware supporting CMIS 4.0 and newer versions. Our vertical integration of optical engines ensures superior performance and power efficiency.
Supports bit rates up to 425 Gbps
3.3V power supply
Hot-pluggable capability
QSFP112 MSA Compliant
Digital diagnostics functions are available via the I2C interface
Product | Part No. | Rate | Wavelength | Distance | Connector | Temp. Range |
400G QSFP112 SR4 | SO0A88SS-QMGA | 4X100GbE/CPRI | 850nm | 100m | MPO | C, I |
400G QSFP112 DR4 | SO0A33QQ-QMGB | 4X100GbE/CPRI | 1310nm | 500m | MPO | C |
400G QSFP112 FR4 | SO00CWQQ-QLGB | 4X100GbE/CPRI | 1271nm,1291nm,1311nm,1331nm | 2km | LC | C, I |
400G QSFP112 LR4 | SO01CWQQ-QLGB | 4X100GbE/CPRI | 1271nm,1291nm,1311nm,1331nm | 10km | LC | C, I |
