Unveiling the Core of Optical Communication: Optical Sub-Assembly
Superxon 100G LR4 QSFP28 transceivers are compliant to the latest releases of the QSFP28 MSA, IEEE 802.3ba.
The 100G QSFP28 LR4 optical transceiver module adopts 4-channel 25G NRZ WDM technology (LWDM4), used in 100GBase-LR4 Ethernet and OTN OTU4 link. The transmission distance can reach up to 10km through single-mode optical fiber.
Supports bit rates up to 103.125Gbps
3.3V power supply
Hot-pluggable capability
QSFP28 MSA Compliant
4-channel cooled LAN-WDM DFB laser and PIN ROSA
Digital diagnostics functions are available via the I2C interface.
Product | Part No. | Rate | Wavelength | Distance | Connector | Temp. Range |

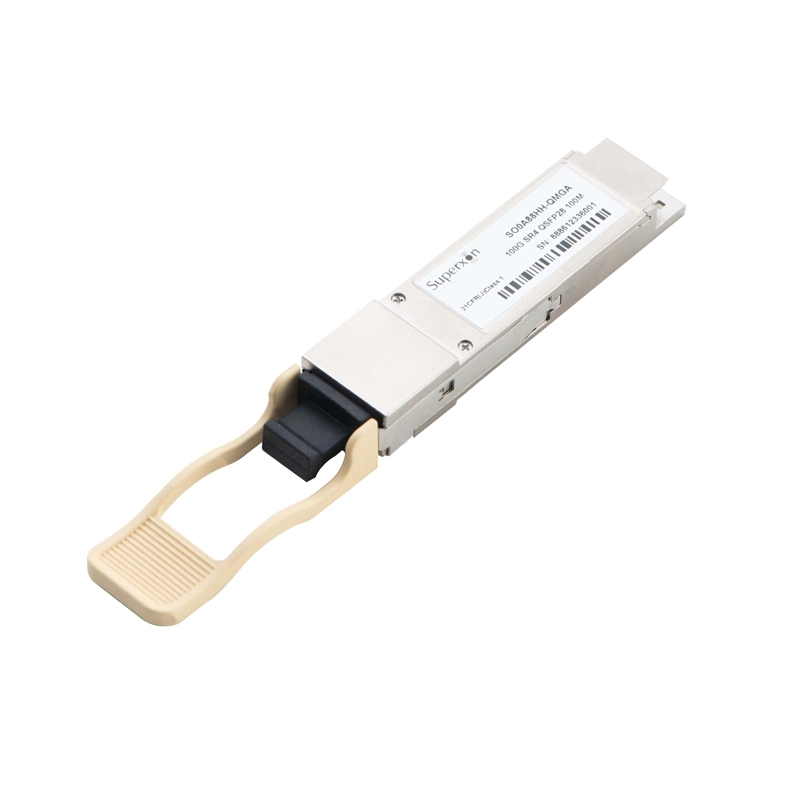

100G QSFP28 SR4 | SO0A88HH-QMGA | 100GbE | 850nm | 100m | LC | C, I |
100G QSFP28 LR4 | SO01CWHH-QLGA | 100GbE | 1271nm,1291nm,1311nm,1331nm | 10km | LC | C, I |
100G QSFP28 ER4 | SO04LLHH-QLGA | 100GbE | 1295.56nm,1300.05nm,1304.58nm,1309.14nm | 40km | LC | C, I |
100G QSFP28 ZR4 | SO08LLHH-QLGA | 100GbE | 1295.56nm,1300.05nm,1304.58nm,1309.14nm | 80km | LC | C, E |
