Unveiling the Core of Optical Communication: Optical Sub-Assembly

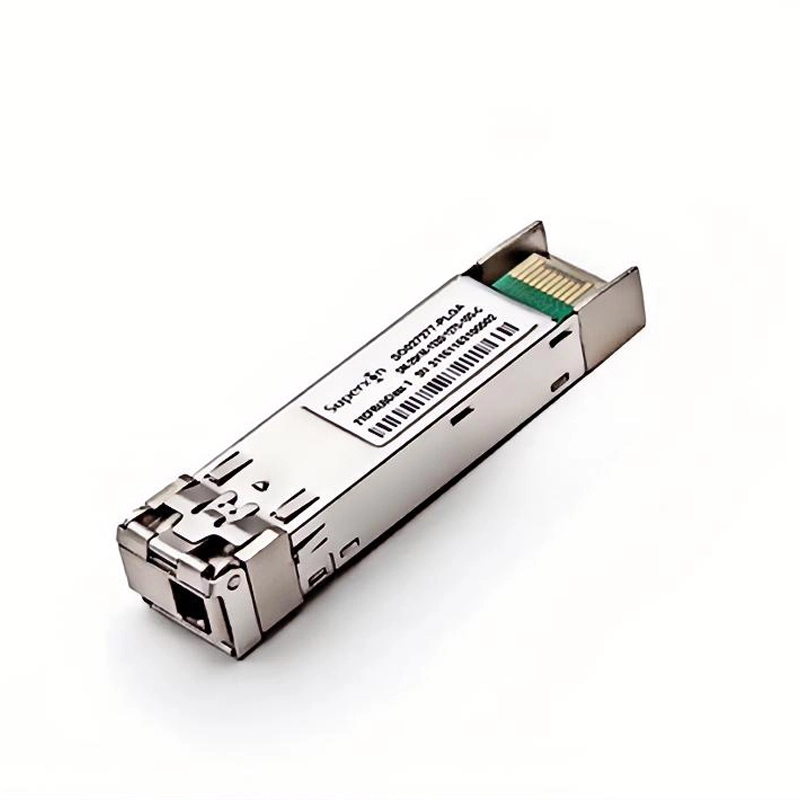

Superxon 1G SFP transceivers are compliant to the latest releases of the SFP MSA, IEEE802.3ae.
Supports bit rates up to 1.25 Gbps
3.3V power supply
Hot-pluggable capability
SFP MSA Compliant
Product | Part No. | Rate | Wavelength | Distance | Connector | Temp. Range |
SFP SR | SO0A8866-PLGA | 1.25G | 850nm | 550m | LC | C, I |
SFP LR | SO013366-PLGA | 1.25G | 1310nm | 10km | LC | C, I |
SFP ER | SO043366-PLGA | 1.25G | 1310nm | 40km | LC | C, I |
SFP ZR | SO085566-PLGA | 1.25G | 1550nm | 80km | LC | C, I |
SFP BIDI LR | SO0135(53)66-PLGA | 1.25G | 1310nm/1550nm | 10~60km | LC | C, I |
SFP BIDI ER | SO0435(53)66-PLGA | 1.25G | 1310nm/1550nm | 10~60km | LC | C, I |
SFP ZR | SO0845(54)66-PLGA | 1.25G | 1490nm/1550nm | 10~80km | LC | C, I |
